GS9000 GX1
- Available to rent
- Available to buy
50-channel dual-polarization GPR with GNSS for large-area utility, pavement, bridge deck, and concrete surveys.

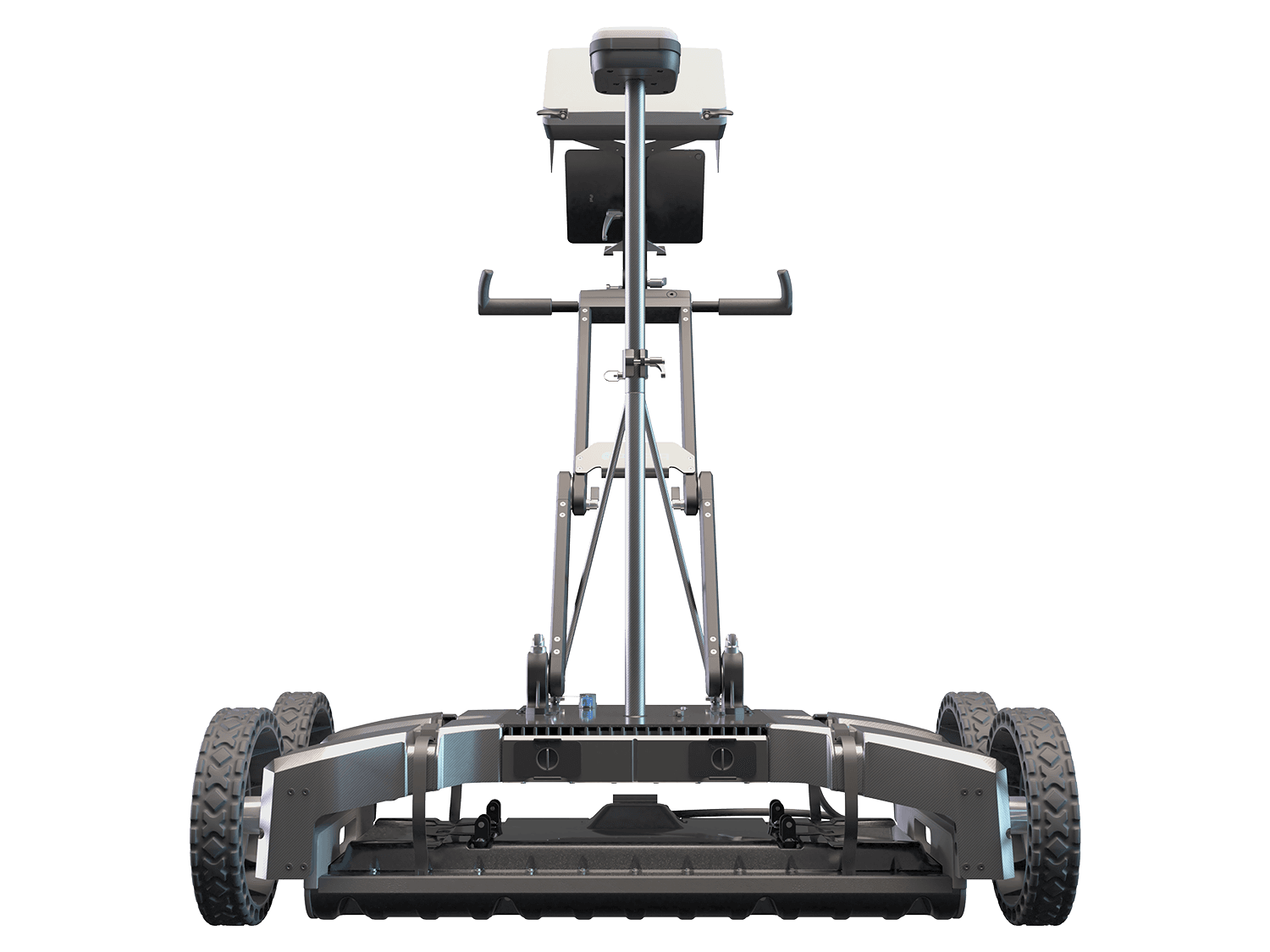

The Proceq GS9000 GX1 is a multichannel ground penetrating radar for infrastructure work that covers a lot of ground. A 50-channel, dual-polarization antenna array and stepped-frequency radar collect high-resolution data for utility locating, concrete scanning, bridge deck inspection, and pavement analysis.
The published frequency range is 500–3000 MHz, aimed at shallow and mid-depth targets. The system collects up to 27,500 scans per second and integrates GNSS so surveys are georeferenced. With the Proceq GPR Subsurface app, crews can watch 3D subsurface data in the field instead of leaving all of the interpretation for the office.
The platform is built for job sites: IP65 protection, carbon-fiber construction, and hot-swappable batteries. Smart Scanning rents and sells the GS9000 GX1 for large-area inspections and subsurface utility engineering.
- 50-channel dual-polarization array
- GNSS positioning for georeferenced surveys
- Up to 27,500 scans per second
Specifications
Figures below are taken from Smart Scanning's product pages or from Screening Eagle's public product sheets. Where a number is not published, it is left off.
Display
- Any compatible Apple iPad (iOS 11.0 and higher)
Measurement modes
- Superline scan
- Area scan
- Free path
Live image processing
- Time-slice view (georeferenced)
- Hilbert migration
- Depth range adjustment
- Dynamic gain and manual gain
- Sensitivity filter
- Background removal filter
- Noise cancellation filter
- Frequency filter
Live display options
- Satellite imagery
- GNSS trajectory
- CAD object layers
- Spectral and seismic colour palettes
Technical specifications
- Technology: multi-channel GPR
- Antenna: 50-channel dual-polarization array
- Frequency range: 500–3000 MHz
- Acquisition: up to 27,500 scans per second
- Positioning: integrated GNSS
- Protection: IP65
- Construction: carbon fiber
- Power: hot-swappable batteries
Applications
- Bridge deck analysis
- Large concrete slab investigations
- Underground utility locating and mapping
- Pavement analysis
