Proceq GPR GP8000
The GP8000 is a portable concrete GPR radar. Faster, easier concrete inspections and structural imaging with SFCW ground penetrating radar technology
- Unparalleled radar penetration depth and resolution in a single GPR probe
- Powerful, user-friendly user interface for faster, easier concrete assessment
- Great handling and ergonomics in all applications
Measurement modes
- Superline Scan¹ (1000m / 3281 ft)
- Area Scan (with Flexible Grid up to 100m2 / 1076 ft2)
Review modes
- Superline scan¹
- A-scan (incl. envelope)
- Migrated view
- Non-migrated view
- Split view¹
- Time-Slice view² Basic
- 3D view

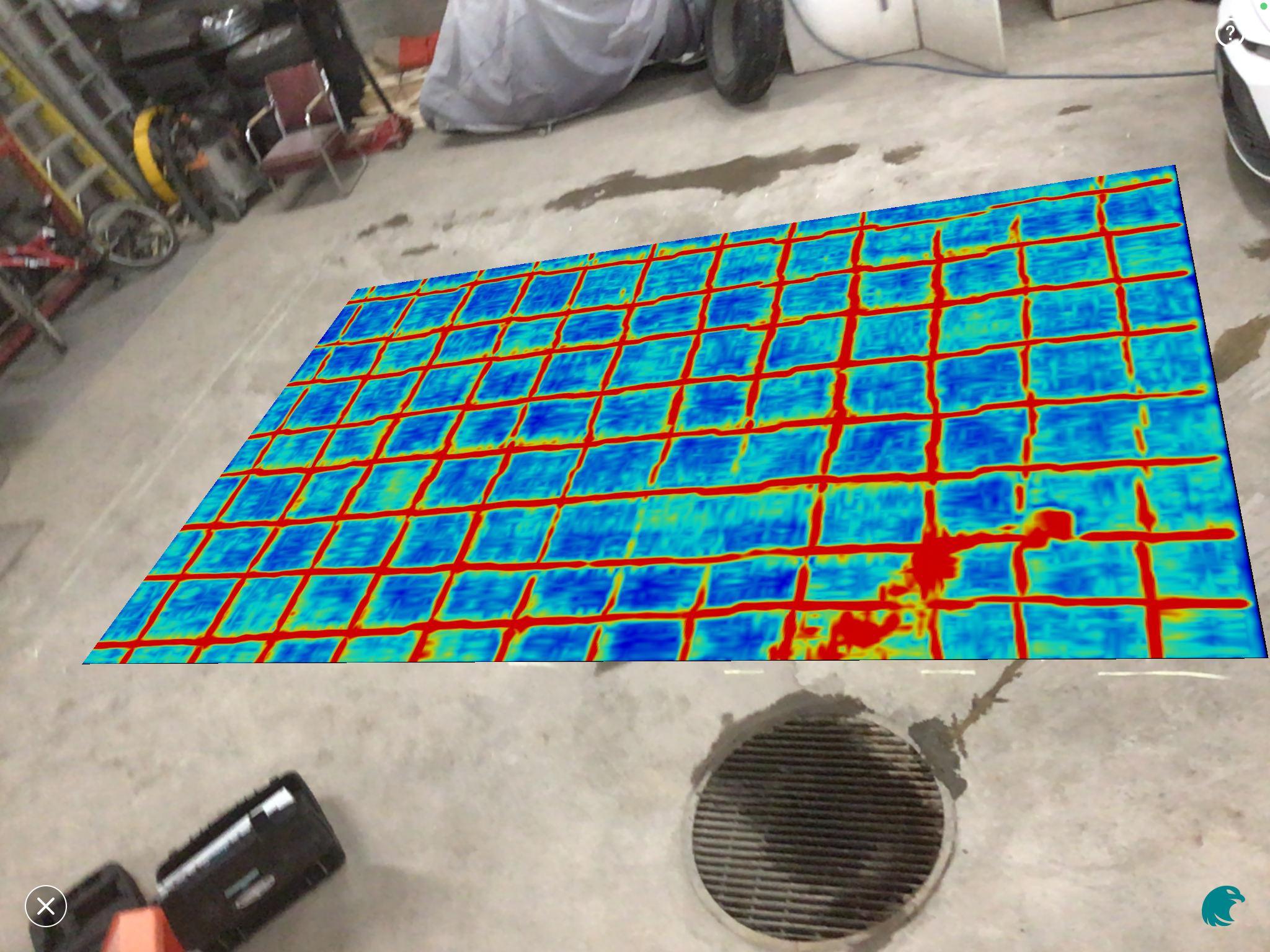

- AR
Advanced visualization
- Time-Slice view Pro
- 3D view
- Augmented Reality (AR)
Tech Specs
- Radar technology - Stepped-frequency continuous-wave (SFCW) GPR
- Modulated frequency - Range 200 – 4000 MHz
- Penetration depth - 150 cm / 60 in
- Battery - Flight-safe, removable pack, 8x AA (NiMH)
- Dimensions 22.1 x 18 x 14 cm / 8.7 x 7.1 x 5.5 in
- Weight 1.5 kg / 3.3 lbs (excl. battery pack)
