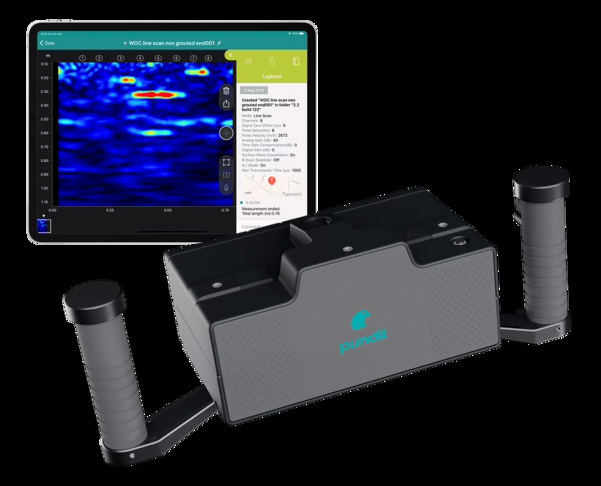

Pundit Ultrasonic PD8050
Consolidated power in a single device for structural imaging, object and defect detection with ultrasound pulse echo
- Real-time imaging, weight optimization and AI assistance
- Large scale 2D, 3D, heatmap and AR visualization modes
- Superior image clarity with control of all transmission parameters
Display Unit
- Any compatible Apple® iPad
- (iOS 11.0 and higher)¹
Measurement modes
- Line scan
- Stripe Scan
- Grid Scan
Review modes
- A-scan (incl. envelope)
- B-scan (Line view)
- C-scan (Time-Slice view)
- Heat map (depth)
- Heat map (pulse velocity)
Applications
- Void and delamination detection
- Bonding assessment
- Thickness measurement
- Honeycombing detection
- Fiber concrete
- Concrete hit prevention
- Imaging of closely spaced rebars
Bandwidth
- 20 - 80 kHz
Technology
- Multi-channel Ultrasonic Pulse Echo
Measuring Resolution
- 0.1 us
Pulses Voltage
- ±50 to ±150 V
- (UPE)
Receiver Gain
- 1 to 10’000
- (0 to 80 dB)
