Smart Scanning — Built for Professionals

GP8000

  • Available to rent
  • Available to buy
Proceq GP8000 handheld concrete GPR with its four-wheel encoder and a separate battery pack

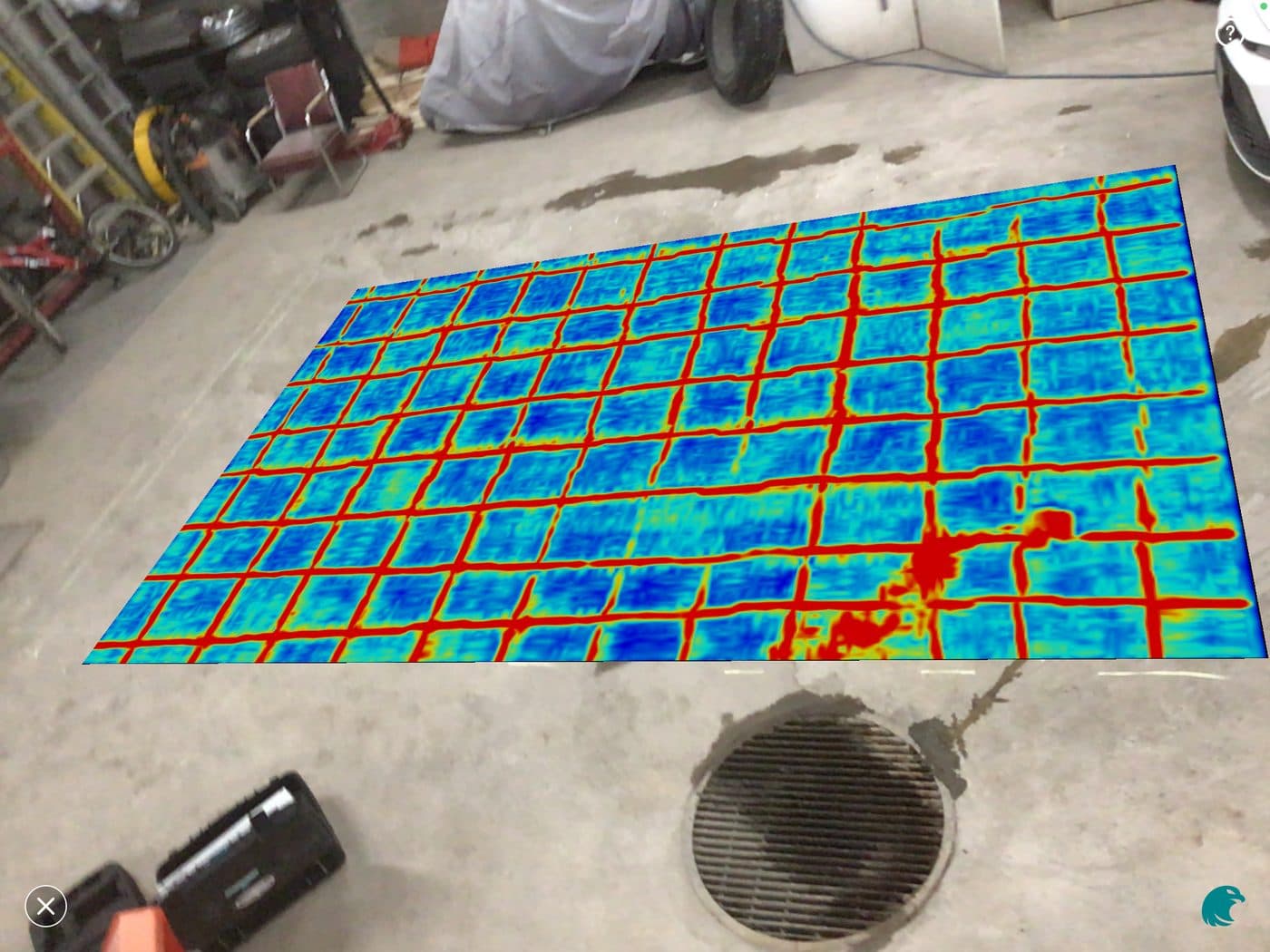

Technician scanning a concrete floor with a Proceq GP8000 while an iPad shows the live GPR app

Portable concrete GPR for inspections and structural imaging with stepped-frequency continuous-wave radar.

The GP8000 is a portable concrete GPR. Smart Scanning offers it for faster concrete inspections and structural imaging with stepped-frequency continuous-wave (SFCW) ground penetrating radar.

It is a single probe with deep penetration and fine resolution in one scan, a straightforward on-screen workflow, and handling suited to slabs, walls, and elevated work. A compatible Apple iPad is the display, using the Proceq GPR app.

Smart Scanning rents and sells the GP8000 across Canada and can walk a crew through setup before the unit goes to site.

  • Deep penetration and resolution in a single GPR probe
  • User interface aimed at faster concrete assessment
  • Handling suited to everyday scanning positions
RentBuy

Specifications

Figures below are taken from Smart Scanning's product pages or from Screening Eagle's public product sheets. Where a number is not published, it is left off.

Measurement modes

  • Line scan
  • Area scan with flexible grid up to 16 m² / 172 ft²

Review and visualization

  • Line scan (B-scan)
  • A-scan, including envelope
  • Migrated and non-migrated views
  • Time-slice view
  • 3D view
  • Augmented reality
  • Advanced visualization: time-slice view Pro, 3D, and augmented reality

Technical specifications

  • Radar technology: stepped-frequency continuous-wave (SFCW) GPR
  • Modulated frequency range: 200–4000 MHz
  • Penetration depth: up to 150 cm / 60 in
  • Battery: flight-safe, removable pack, 8× AA (NiMH)
  • Dimensions: 22.1 × 18 × 14 cm / 8.7 × 7.1 × 5.5 in
  • Weight: 1.5 kg / 3.3 lb, excluding the battery pack
  • Ground clearance: 0.8 cm / 0.32 in
  • Display: compatible Apple iPad

Applications

  • Rebar mapping before drilling, coring, or cutting
  • Post-tension cable location
  • Embedded conduit and live-wire checks
  • Slab and structural concrete imaging

Related equipment

  • GP8000 Lite — A simpler concrete scanner for fast detection of rebar, live wires, and other objects.
  • GP8100 — Portable concrete GPR array for quick object detection and dense data collection in one pass.
  • GP8800 — Handheld wireless concrete GPR for inspections in tight spots, using SFCW radar that fits in the palm of your hand.
