GP8800
- Available to rent
- Available to buy
Handheld wireless concrete GPR for inspections in tight spots, using SFCW radar that fits in the palm of your hand.

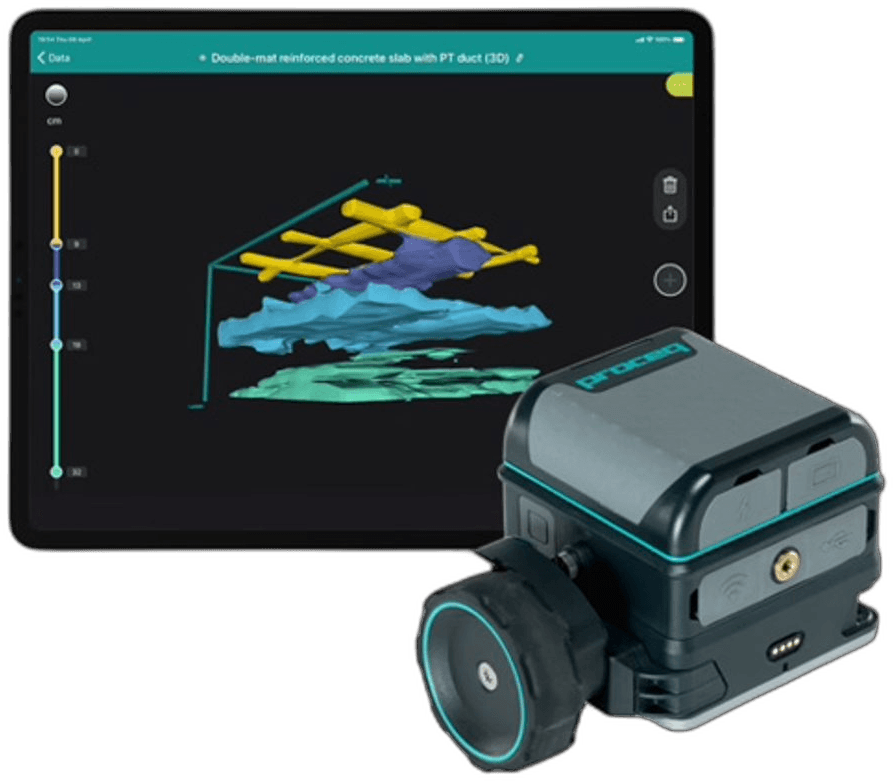

The GP8800 is a handheld concrete GPR. Screening Eagle describes it as the wireless stepped-frequency continuous-wave instrument for concrete inspection and structural imaging that fits in the palm of your hand.
It is the unit to reach for in tight and congested space: corners, congested slabs, and positions where a larger wheeled probe is awkward. A cross-polarized antenna and a wireless wheel can be reconfigured without tools, including trailing and side-car setups. The display is a compatible Apple iPad, with USB-C tethering available where Wi-Fi is restricted.
Smart Scanning rents and sells the GP8800 across Canada. The published hardware specs below are from Screening Eagle’s GP8800 page, so this listing describes the handheld unit itself.
- Wireless handheld SFCW GPR
- Built for tight and congested measuring positions
- Cross-polarization with a reconfigurable wireless wheel
Specifications
Figures below are taken from Smart Scanning's product pages or from Screening Eagle's public product sheets. Where a number is not published, it is left off.
Measurement modes
- Line scan
- Area scan with flexible grid up to 16 m² / 172 ft²
Review and visualization
- Line scan (B-scan)
- A-scan, including envelope
- Migrated and non-migrated views
- 3D view
- Augmented reality
- Advanced visualization listed for the platform: time-slice view Pro, 3D view, and augmented reality
Technical specifications
- Radar technology: stepped-frequency continuous-wave (SFCW) GPR
- Modulated frequency range: 400–6000 MHz
- Penetration depth: 65 cm / 25.6 in
- Battery options published by Screening Eagle: removable Li-ion pack, and a flight-safe removable pack using 4× AA (NiMH)
- Autonomy published by Screening Eagle: Li-ion pack up to 8 h; 4× AA (NiMH) pack up to 2.5 h; power bank (not included) up to 8 h
- Dimensions: 8.9 × 8.9 × 7.6 cm / 3.5 × 3.5 × 3 in
- Weight: 487 g / 17.2 oz, excluding the battery pack
- Ground clearance: 0 cm
- Antenna distance to edge: 4.5 cm / 1.77 in
- Connections: Wi-Fi, and USB-C to the display unit
- Display: compatible Apple iPad (iOS 15 and higher recommended on the current Screening Eagle sheet)
Applications
- Rebar detection and mapping in confined areas
- Post-tension cable location
- Embedded conduit and utility detection in concrete
- Concrete slab assessment
- Bridge deck and structural slab inspection
- Void detection
- Quality control during construction
